ANVIZ

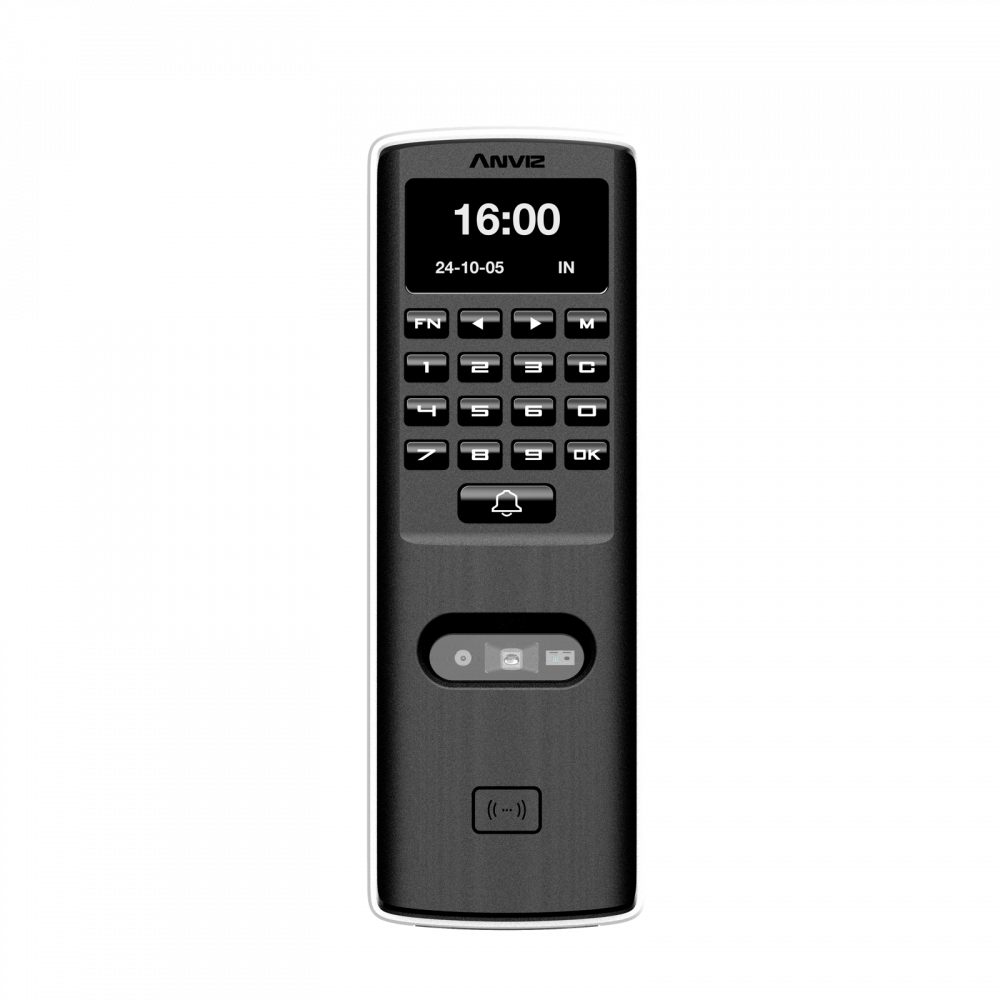

ANVIZ M7 Palm Outdoor Access Control Terminal
ANVIZ M7 Palm Outdoor Access Control Terminal
Waterproof optical Palm Vein Access Control Terminal. Adapts to all Palms & directly controls door locks. Works with Anviz CrossChex and ClockReportsXE software.
$999.00$1,599.00Save 38%
Only 1 left
- Authorized dealer stock
- Sealed USA retail product with the full manufacturer warranty and every accessory the factory packed.
- Shipping
- Ships anywhere in the United States and Canada. NYC installation can be added to the order.
Questions on compatibility or channel count? Call 718.275.9343 and we will check it against your recorder before you buy.
Specifications
Professional Access Control Terminal for Outdoor Installation
- The Anviz M7 Palm Vein Terminal, with optional RFID is a new generation outdoor access control device from Anviz. The M7 Palm adopts a narrow metal case and IP66 outdoor design with activation technologies in palm vein recognition for ease of operation. As an access control device, which are designed with PoE communication and access interface separation, the M7 Palm is easy to install and reduces the labor cost.
- The powerful access control function is noteworthy for the M7 Palm, with a relay output for door control, Wiegand output, time zones and access groups. TCP/IP and RS485 multi communications are also included with an Alarm push function that increases area security.
Features
- Can store up to 500 Palms, 500 Users, 50000 Records
- 3 Verification modes
- Palm Vein, RFID Card/Tag, ID & Password
- Identification distance
- 10～30cm
- Identification speed
- 0.5s<
- IP66 Rated outdoor waterproof rating

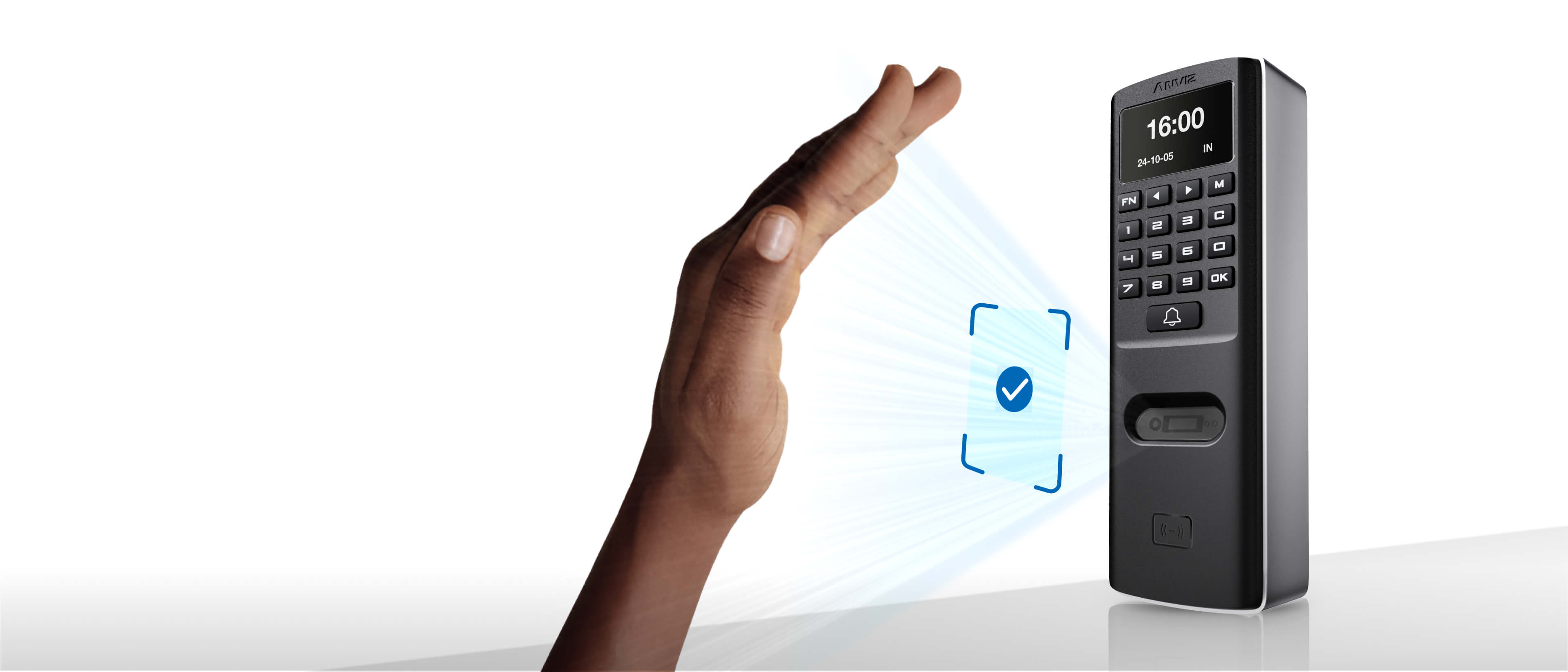

- Non-Contact palm vein recognition
- Supports POE power supply
- RS485 and TCP/IP communications, Wiegand output
- Directly controls door lock or via an SC011 Controller
High-Light OLED display
- IK10 Rated to help withstand vandalism
- Relative Operating Humidity of 20% to 80% (non-condensing)
- Operating Temperature
- -30°C～60°C
- Operating Voltage
- DC 12v
- Standard EM RFID card reader module
- Connects to the free downloadable Anviz Crosschex software.
- Warranty
- 1 Year RTB

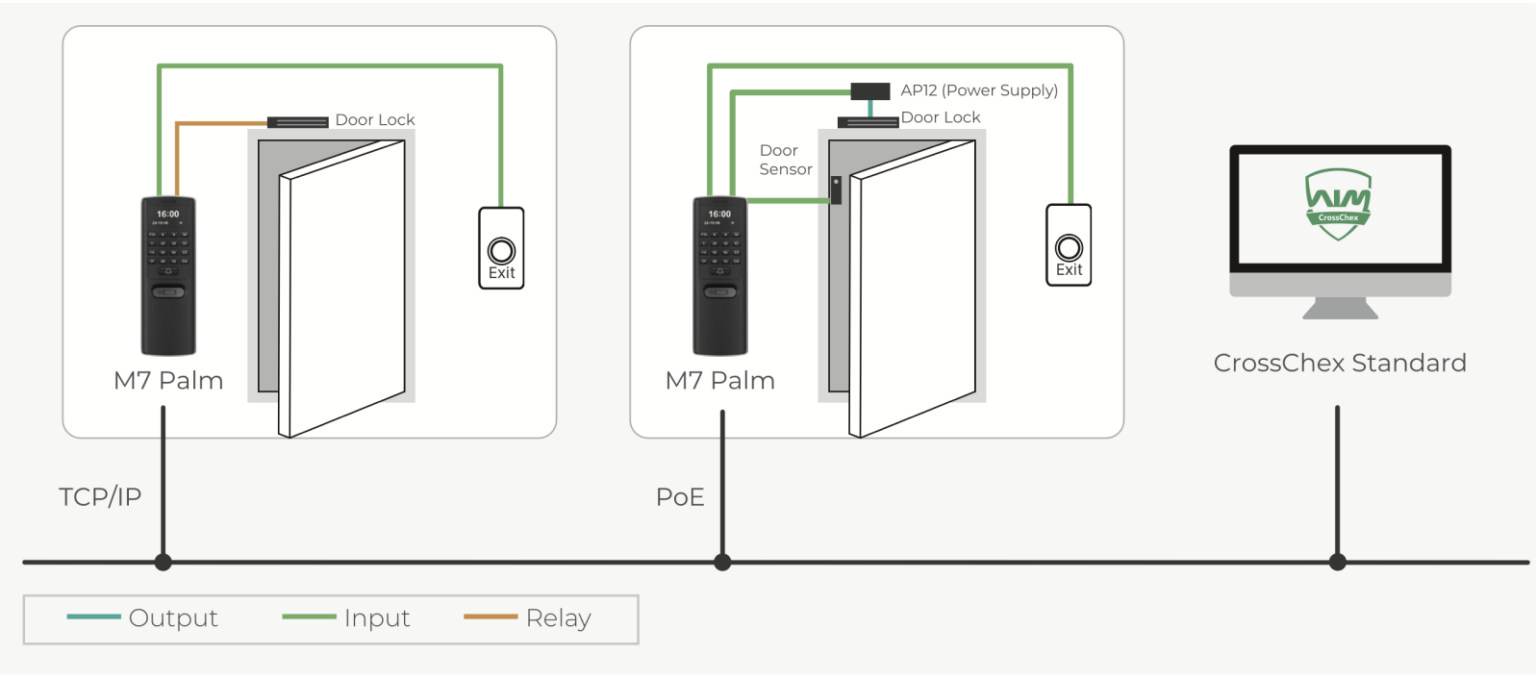

Standalone System
- The core part of this system is standalone access control. With the lock directly controlled by the standalone access control terminal. This system is able to supply an easy and safe solution.
Secure System
- The secure system consists of an access controller and reader. The lock is controlled by the access controller so the system is more secure & suitable for higher safety requirements.
Network System
- The network system consists of a standalone system, secure system, and distributed system. This system is the most professional solution that fits multiple requirements.
