Laptops-Notebooks >
CLOVER ELECTRONICS LCD2284DVR

LCD2284DVR - 22

View More Images

Email this to a friend

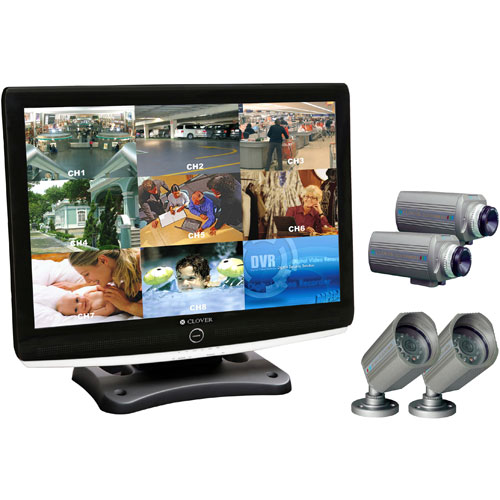

CLOVER - LCD2284DVR - 22" LCD Screen Security System Built-in 8 Ch. DVR & 4 Cameras LCD-2284DVR LCD2284DVR
320GB HDD, 8 Channel DVR "NEW MODEL"
Qty In Stock MSRP: Your Price Qty
10 $2,999.99 $1,650.00

Detailed Description
Features:
  • 2-way audio through Internet
  • 8 Camera capacity
  • 15 Month Recording Time
  • Alarm & Motion Detection
  • 320GB HDD
  • Mouse & Remote Controller
  • Easy to set up
    • Package Includes:
  • 1 - 22" TFT LCD built-in 8ch DVR
  • 2 - Outdoor cameras built-in water proof microphone
  • 2 - Indoor cameras built-in C/CS mount lenses & microphones
  • 4 - 60ft 6pin Din cable
  • 4 - Adjustable mounting brackets
  • 1 - A/C power cable
  • 1 - Software for remote set-up
  • 1 - Instruction manual
  • 1 - Quick set-up guide
  • 1 - Warranty registration card
  • 1 - Remote controller
  • 1 - RJ-45 cable
  • 1 - PS2 /USB mouse

    • SPECIFICATIONS:
    (DVR)
    TV System NTSC 60 fields/sec
    PAL 50 fields/sec
    Resolution NTSC 720 x 480
    PAL 720 x 576
    Operating System Linux OS
    Video Inputs 8x6pin din inputs, 1.0Vp-p composite @75 ohms
    Video Outputs 1.0Vp-p composite @75 ohms
    for slave monitor
    Real Time Display 240 frames/sec
    Recording Frame Rate 240 frames/sec based on 720x240
    programmable on each channel
    Hard Disk Drive Built-in 320GB
    Algorithm MPEG-4
    Recording Schedule, manual, event recording by motion
    detection and alarm sensor
    Replay Forward, Reverse (fast, nomal, stop, pause)
    Back up USB 2.0,External HDD, Stick Memory, Through Network
    Alarm In 8 inputs
    Alarm Output 1 relay outputs (1A max)
    Network Ethernet 10/100M
    RS485 Pan/Tilt, Remote control
    (Camera)
    Image Sensor 1/3" SONY color CCD sensor
    Resolution 420 TV Lines
    Current Consumption 120mA
    Electronic Iris NTSC: 1/60 to 1/100,000 sec
    Lens Outdoor camera: 6mm fixed lens
    Indoor camera: 6mm C/CS mount lens
    Back light Compensation Auto
    AWB & AGC Auto
    (Monitor)
    Display TFT LCD 22" Wide Screen
    Optimal Resolution 1,680 x 1,050
    Dot pitch 0.282 (H) x 0.282 (V) mm
    Display Color 16.7M (Hi-FRC)
    Pixel Arrangement RGB vertical stripe
    Display mode Normally white
    Luminance of White 300 (Typical) cd/m² at center
    Contrast ratio 1000:1 (Typical) at center
    Response time 5 msec
    AC 100-264V, 50/60Hz auto switch,
    Power Consumption 130W
    Operating Temp. 0º C to 60º C
    Humidity 10 to 90%
    Dimensions 531W x 440H x 79D mm (monitor only)
    531W x 446H x 230D mm (w/ stand ass'y)

    Additional Information
    Manufacturer's Info Page
