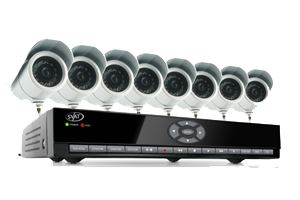

8 Channel H.264 Smart DVR Security System with Coaching iMenu and 8 Indoor/Outdoor Hi-Res CCD Night Vision Surveillance Cameras

CV301-8CH-008

SVAT Electronics CV301-8CH-008 8 Ch H.264 Smart DVR Security System Coaching iMenu and 8 Indoor/Outdoor Hi-Res CCD Night Vision Surveillance Cameras


FEATURES
  • Record over a month of footage with H.264 Compression
  • Let the coaching iMenu teach you about the DVRs different settings and features
  • View video online with no service fees from any computer in the world
  • Compatible with Windows Mobile, Symbian operating systems and iPhones
  • 24/7 Lifetime Live support allows you to always have access to an expert


This SVAT DVR system will work for almost any property because it includes 8 indoor/outdoor night vision cameras. Depending on the size of your business or home, you can mount the cameras at all entrances, in your yard and even inside. Setup is fast and hassle-free because everything you need is included in one simple kit and an interactive coaching menu helps you along the way. Keep a constant watch of your property and record over a month of video on the DVR's built-in 500GB hard drive that uses revolutionary H.264 compression to conserve memory. You'll also enjoy the convenience of being able to check in from anywhere in the world using the Internet. This DVR was specifically designed for the do-it-yourselfer and is loaded with features that will help keep your property safe and secure.

Record Over 1,000 Hours of Video with H.264 Compression
The 500GB hard drive is optimized for 24/7 surveillance and uses cutting edge H.264 compression to record over 1,000 hours of continuous video. H.264 compression provides an amazing picture while saving almost 50% on storage space versus DVRs with MPEG-4 compression. We only use hard drives that are specifically designed for high capacity writing, which ensures long product life and accurate video data storage. Your DVR will alert you when your memory space is full so that you can overwrite your old video, stop the unit from recording, or backup and transfer your video footage.

Coaching iMenu
This system is one of the first to have a highly interactive menu that assists you as you use it. When you scroll through different menu settings, helpful information bubbles will pop up to help you. Learn what each setting means so that you can configure the system to your needs effectively. This user-friendly feature makes it easy to setup and use your DVR.

View Video Online with No Service Fees
Regardless of where you are in the world, you can view your DVR's live or recorded video footage on any Internet accessible PC with Internet Explorer. See what is happening on your property and check in on your employees or family members. (Requires a router, Windows operating system, Internet Explorer browser, and broadband Internet connection for online viewing).

Smartphone Compatible
The CV301-8CH is compatible with BlackBerry® Windows®, Symbian® and iPhone® Smartphones. Now you can access live video footage directly from your smart phone at any time. This DVR allows you to utilize 3G technology, which is specifically designed to transmit your video and audio at higher speeds.



DISCLAIMERS:

    • Any record times mentioned are based off lowest record settings with one camera connected
    • iPhone is a registered trademark of Apple Corporation, BlackBerry is a registered trademark of research in Motion Limited, Windows is a registered trademark of Microsoft corporation, Symbian is a registered trademark of Symbian Software.
Record Over 1000 Hours view online

Functionality Triplex
Video Compression H.264
Number of cameras supported 8
Resolution NTSC : 704 X 480 / PAL: 704 X 576
Recording Frame Rate NTSC: 240 FPS
PAL: 200 FPS
Recording Resolution NTSC: CIF(352 X 240) / PAL: CIF(352 X 288)
Recording Qualities Best, Good, Normal
Recording Media HDD (Backup via USB)
Storage Capacity 500 Gb (Maximum 1Tb)
HDD Type Internal SATA
Video Format NTSC/PAL
Video Loss Alarm Auto Detect Alarm
Video Inputs 8 CH Composite BNC
Video Display Output 2 CH Composite BNC
1 VGA
Audio Input 1 channel RCA
Audio Sampling Rate 8 kHz
Audio Codec ADPCM
Audio Output 1 channel RCA
Audio Bitrate 8 kbps
Live Frame Rate NTSC: 30 FPS / Camera
PAL: 25 FPS / Camera
Picture-in-Picture Yes
Network Protocol TCP/IP, DDNS, DHCP, PPPoE,UDP
Network LAN IP Static, Dynamic
Network Connection 10/100 BaseT Ethernet (RJ-45)
Back-up USB Flash drive, USB HDD & network
Play Search Mode Time/Date, View by Event
Play Speed 2x, 4x, 8x, 16x
OSD Language Display English, Spanish, French, Portuguese, Italian, Dutch, Check, Polish
Time and Date Stamp Display Yes
Password Protection Yes, Local Menu Password and Remote Viewing Password
Adjustable Screen Settings Color, Brightness, Contrast, VGA Output Resolution
Operating System Linux
Processor ARM 9
Disk Full Warning Yes
Automatic Overwrite Option Yes
Watermark No. On backup footage
Power Input 12V DC 3A
Power Consumption 10W~15W
Power Adapter Input 100V 50/60HZ~240 50/60HZ
Operating Temperature 41F~104F
Operating Humidity 10%~90%
Dimensions 12.4" x 2" x 8.8"
Weight 5.5lbs


PACKAGE :

  • DVR with 500GB HDD
  • 8 Indoor/Outdoor Night Vision CCD Cameras
  • IR Remote Control (batteries included)
  • Power Adapter for DVR
  • 2 Four-to-One Port Power Supply for Cameras
  • 10ft RJ-45 Ethernet Cable
  • 8 x 60ft 4 PIN DIN to RCA (male) Power Cables
  • 10 RCA to BNC Connectors
  • Mounting Hardware
  • 4 Window Warning Stickers
  • Quick Start Guide
  • Instruction Manual
  • Software CD
  • 1 Year Warranty
  • 24/7 Lifetime Live Customer Support

COMMING SOON...
