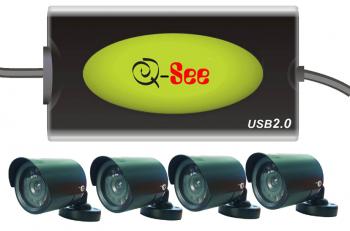

Q-See QSDT4U2MNRC 4 Ch. MPEG4 USB 2.0 Network DVR Adapter 4 Color CMOS Cameras
|
Product Model Number: QSDT4U2MNRC
Overview:
This Q-See PC Based security solution turns your desktop or notebook PC into a security system. The QSDT4U2MNRC system includes a USB 2.0 DVR Card with MPEG4 compression for conserving storage space with little loss of quality, stores files directly on your PC hard drive, has multiple recording options including motion, and supports remote access over the internet via Internet Explorer. This bundle includes 4 color indoor/outdoor color CMOS cameras with 30 feet of night vision.
Q-See solutions are the perfect answer for keeping your family secure, protecting your assets against theft, or managing your staff and resources more effectively. This easy to install complete security package has everything you need to setup a secure home or business. With Q-See, surveillance can be handled remotely – worldwide.
Product Features
| PC based 4 channel DVR USB adapter |
| Record at 30 FPS NTSC (shared) |
| Display at 30 FPS NTSC (shared) |
| Remote internet monitoring and networking (software incl) |
| Auto email notification |
| 2 Audio inputs |
| 4 Color CMOS Cameras with 30 of Night Vision |
| 60 ft. of cable with each camera for flexible installation (cable can extend to longer distance) |
Product Specifications
| Video Compression |
MPEG4 |
| Video Inputs |
4 RCA |
| Video Output |
Uses PC VGA |
| VGA Resolution |
Up to 640x480 |
| USB Port |
PC USB Port |
| Display Resolution |
Up to 640x480 |
| Display Frame Rate (Shared) |
30 FPS |
| Playback Resolution |
Up to 640x480 |
| Record Frame Rate (Shared) |
30 FPS |
| Search Options |
Time, Event (Alarm or Motion Detection) |
| Hard Drive Number/Type Supported |
Stores files on PC Hard Drive - 100GB free space recommended |
| Audio Inputs/Outputs |
2 RCA input |
| Ethernet Port |
Uses PC Ethernet port |
| Remote Monitoring |
Internet Explorer |
| Software Operating System Support |
Win2000 / WinXP / Vista (32 bit) |
| RS-485 Port (PTZ Support) |
Serial port on PC |
| External Alarm In/Out |
No |
| Power Supply |
NA |
| Power Consumption |
NA |
| Operating Temperature/Humidity |
NA |
| Dimensions (W x D x H) |
2.5 x 4 x 0.75 in (64 x 102 x 19 mm) |
| Weight (combo package) |
|
Product Contents
| 1 |
4 Channel DVR USB 2.0 Adapter |
| 2 |
QS2018 Color CMOS Cameras with 6mm lens |
| 2 |
QS2018W Color CMOS Cameras with 3.6mm lens |
| 4 |
Camera Stands |
| 1 |
Power Supply for Cameras |
| 1 |
4 Way Power Splitter for Cameras |
| 4 |
60 FT Camera Cable |
| 1 |
Software Installation CD |
| 1 |
Users Manual |
Product Accessories
| QS60F |
RCA Cable 60Ft |
| QS120F |
RCA Cable 120Ft Video Audio Power Cable |
| OS Supported |
Win2000, WinXP, Vista (32 bit) |
| CPU |
Intel Pentium III 800 (minimum) |
| HDD |
Mininum 100GB Free space |
| RAM |
512 MB (minimum) |
| VGA Support |
most AGP PCI-E Graphics cards with 64 MB of RAM that have full Direct Draw Support *some newer PCI-express cards are not yet supported. |
| Port |
USB 2.0 Port |
|
Price: $259.99
Buy Product Online | Visit Store Home
|
|
|
Manufactured by Q-SEE |
|
|
|
|
