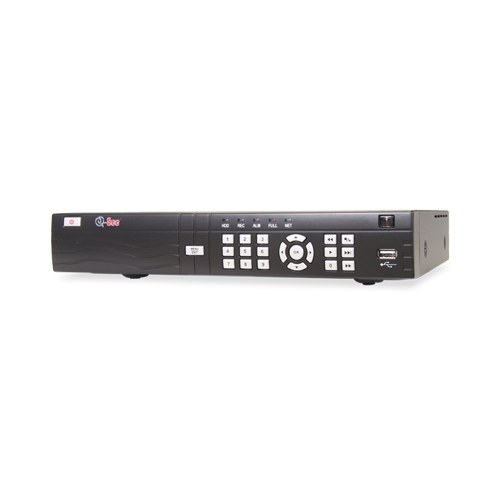

8 Channel H.264 Pentaplex Network DVR - Commercial SERIES

QS408-1

Q-See QS408-1 8Ch H.264 Network DVR 1TB Real Time CIF Recording,D1 rec,mobile phone surveillance


Product Model Number: QS408-1

Overview:

Quality you can see and experience at an affordable price. This 8 channel DVR features real time CIF recording, remote Internet monitoring and mobile surveillance through cell phones with Windows Mobile Pro, Symbian OS, iPhones, ipad, Android,and some Blackberry models on 3G networks. The H.264 compression allows for maximum storage and little loss of quality, while recording video on to a hard drive. It can simultaneously display live footage, record, playback, connect via network, and back-up without any recording loss.

Q-See’s Digital Video Recorders (DVRs) are designed to manage multiple cameras, and enable users to view, record and playback recorded video locally or over the Internet. This DVR supports up to 8 cameras, and can be integrated into your current security system. With Q-See, surveillance can be handled remotely – Worldwide.


Product Features

H.264 Compression
(CIF) Real-time recording on each channel, D1 on 2 Channels
Triplex technology (recording, playback, and net transmitting at the same time)
USB mouse function to easily navigate through program menus
USB port for backup to USB flash drive or USB Hard Drive
Remote Internet monitoring (up to 5 users at the same time)
6 individual users with own name, password, and permissions
Mobile Phone Surveillance (Win Mobile Pro, Symbian OS, iPhone, iPad, Android and some blackberry models on 3G Networks)
VGA Port for Viewing Flexability
8 Audio Input / 1 Audio Output
Central Management Software (CMS): Monitor and manage several DVR Systems from one central location. Example: You own 4 DVR systems, same model number, in 4 offices. Connect to all 4 DVRs and monitor and manage simultaneously from the same computer screen

Product Specifications

Category Description
Video Compression H264
Video Inputs 8 BNC
Video Output 1 BNC, 1 VGA
VGA Resolution 800x600, 1024x768
Display Resolution 704x480
Display Frame Rate (Shared) 240 FPS
Display Frame Rate (Shared) 30 FPS
Playback Resolution 352x240, 702x408 on ch1 and ch2
Record Frame Rate (Shared) 30 FPS
Record Options Time, Alarm, Motion Detection and Manual
Audio Inputs/Outputs 8X RCA input and 1X RCA output
USB Port 2 USB 2.0 Ports
USB Support Mouse, Flash drive, Hard Drive
Ethernet Port 1-RJ45
Ethernet Port 1-RJ45
Remote Monitoring Internet Explorer, Mobile Phone with Win Mobile Pro, Symbian OS,iPhone, iPad, Android, and some Blackberry models on 3G Networks
Operating Systems Supported Win2000, WinXP, Vista, Win7 (MacOS not supported)
RS-485 Port (PTZ Support) Yes
Number of Hard Drives - Type 1TB HDD PRE-INSTALLED, 1/ SATA up to 1TB
Power Supply 110-240V, 19V 3.42A
Power Consumption 6W (excluding HD)
Operating Temperature/Humidity 50°F to 122°F (-10°C to 50°C)/ 10% - 90%
Dimensions (WxDxH)
Weight

Product Contents

Qty Description
1 QS408 8 Channel H.264 Network DVR
1 DVR power supply
1 Remote control (batteries not included)
1 USB mouse
1 RJ-45 Cat 5 Network Cable
1 BNC to RCA Video Cable
1 Software CD
1 Product Manual

Product Compatibility

Type Description
Operating Systems Supported Win2000, WinXP, Vista, Win7 (MacOS not supported)
Smart Phones Supported Win Mobile Pro, Symbian, iPhone/iPad, Android, Blackberry Curve 8900, Bold 9700, Tour 9630

Installation Guides


English

Quick Internet and Smart Phone Setup Guide

Software


English

PC Remote Monitoring for One or Multiple DVRs (CMS-10.5.25.3)
Blackberry OS Smart Phone Software
Symbian OS Smart Phone Software
Video Playback and Conversion Software
Windows Mobile Pro Smart Phone Software
Android OS Smart Phone Software

Price: $379.99
Buy Product Online | Visit Store Home

Manufactured by Q-SEE
