Q-See QR4274-418-3 4 Ch. H264 Network DVR,7 inch Flip Up LCD Monitor, Real Time Recording, 4 Color CCD QSDS0612D Cameras, 320GB
|
Compatible with iPhone
Product Model Number: QR4274-418-3
Overview:

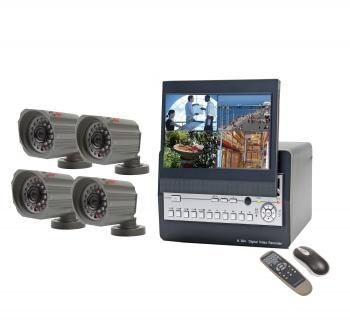

This Q-See observation systems includes a DVR with a built-in 7" motorized flip monitor. The QR4174-418 uses H264 compression for conserving storage space with little loss of quality while saving files to the pre-installed 320GB hard drive. It also features a built-in quad processor and multiple recording options. Easily backup your vital scenes to a USB flash drive or hard drive. Remotely monitor your assets over the internet via Internet Explorer, or through a cell phone with Window Mobile Pro, Symbian OS, iphones, and some Blackberry models on 3G networks.
Q-See's Digital Video Recorders (DVRs) are designed to manage multiple cameras, and enable users to view, record and playback recorded video locally or over the Internet. This DVR system includes 4 color CCD cameras, and can be integrated into your current security system. With Q-See, surveillance can be handled remotely worldwide.
Product Features
| 7 inch Motorized indash LCD monitor |
| H.264 Compression |
| (CIF) Real-time recording on each channel |
| Triplex technology (recording, playback, and net transmitting at the same time) |
| USB mouse function to easily navigate through program menus |
| USB port for backup to USB flash drive or USB Hard Drive |
| Remote Internet monitoring (up to 5 users at the same time) |
| Mobile Phone Surveillance (Win Mobile Pro, Symbian, iPhones and some Blackberry on 3G Networks) |
| 4 Audio Inputs / 2 Audio Output |
| One hard drive pre-installed |
| 4 CCD Color Camera kits with Sony CCD image sensors and 40 ft. night vision |
Product Specifications
| Video Compression |
H.264 |
| Video Inputs |
4 BNC |
| Video Output |
1 BNC |
| VGA Resolution |
None |
| Display Resolution |
704x480 |
| Display Frame Rate (Shared) |
120 FPS |
| Playback Resolution |
352x240, 704x576 |
| Record Frame Rate (Shared) |
120 FPS, 30 FPS |
| Record Options |
Time, Alarm, Motion Detection and Manual |
| Search Options |
Time, Event (Alarm or Motion Detection) |
| Hard Drive Number/Type Supported |
1 SATA up to 1TB |
| Audio Inputs/Outputs |
4X RCA input and 2X RCA output |
| USB Ports |
2 USB 2.0 Ports |
| Ethernet Port |
1-RJ45 |
| Remote Monitoring |
Internet Explorer, Mobile Phone with Win Mobile Pro, Symbian, iPhone and some Blackberry models on 3G Networks |
| Operating System Support |
Win2000, WinXP, Vista, Win7 (MacOS not supported) |
| RS-485 Port (PTZ Support) |
Yes |
| External Alarm In/Out |
4/1 |
| Power Supply |
110-240V, 12V 3A |
| Power Consumption |
10 to 15W |
| Operating Temperature/Humidity |
50°F to 104°F (10°C to 40°C)/ 10% - 90% |
| Dimensions (WxDxH) |
15.75 x 2.75 [7 w/LCD up] x 11.25 in (400 x 70 [178 w/LCD up x 286 mm) |
| Weight |
8 lbs (3.65 kg) |
Product Contents
| 1 |
QSDR74RTS 4CH H264 real time DVR with 7 inch In-Dash LCD Monitor |
| 1 |
Power Supply for DVR |
| 1 |
Remote control (batteries not included) |
| 1 |
USB mouse |
| 1 |
RJ-45 Cat 5 Network Cable |
| 1 |
BNC to RCA Video Cable |
| 1 |
Product Manual |
| 2 |
Quick Start Guides |
| 1 |
Software CD |
| 1 |
320GB Hard drive (pre-installed) |
| 2 |
QSDS0612D 6mm Sony Sensor CCD camera kits (40 ft night vision) |
| 2 |
QSDS3612D 3.6mm Sony Sensor CCD camera kits (30 ft night vision) |
| 4 |
Camera stands |
| 4 |
60 feet cables |
| 1 |
Power Supply for Cameras |
| 1 |
4 Way Power Splitter for Cameras |
Product Requirements
| Operating Systems Supported |
Win2000, WinXP, Vista, Win7 (MacOS not supported) |
Shipping
This item is eligible for free ground shipping within the United States. Q-See also offers expedited delivery for an additional charge. Call the Q-See Sales department toll-free number at 877-998-3440 x 537 Monday through Friday 8:30 a.m. to 5 p.m. Pacific time for a quote on your preferred shipping method.
- U.S. shipping
- FREE ground mail service
- Next Day delivery – fastest possible
- Next Day Saver
- Second-day delivery
- Three-day delivery
- Canada shipping
- $25 Flat Rate Ground
- UPS Expedited
- UPS Express
|
Price: $425.99
