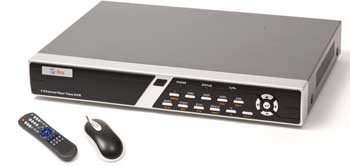

4 Channel H.264 Pentaplex Network CIF Real Time DVR (HDD OPTIONAL)

QSC26404 -  4 Channel H.264 Pentaplex Network CIF Real Time DVR  (HDD OPTIONAL)

Q-See - QSC26404 - 4 Channel H.264 Pentaplex Network CIF Real Time DVR (QSD9004V)(HDD OPTIONAL)


Support Blackberry model Curve 8900, Bold 9000 / 9700
With the latest firmware update that is available on the website.

Overview:

The new industry standard of H.264 compression enables higher quality, lower bit rates, and new applications. This 4-channel Pentaplex digital video recorder records CIF real-time video on each channel onto the hard drive when installed. It can simultaneously display live footage, record, playback, connect via network and Internet, and back-up without any recording loss. Connect the DVR to an LCD monitor or television to view up to 4 cameras at the same time. With the RJ-45 connection, you can even monitor remotely through LAN or Internet. The USB port allows you to backup your critical footage. H.264 technology provides a far more efficient algorithm for compressing video than any other compression method available. It supports dual video streams so you can record in a higher resolution but view over the internet at a lower resolution for faster images.

Q-See`s Digital Video Recorders (DVRs) are designed to manage multiple cameras, and enable users to view, record and playback recorded video locally or over the Internet. This DVR can support up to 4 cameras, and can be integrated into your current security system. With Q-See, surveillance can be handled remotely – worldwide.


Product Features

TI DSP Chip
H.264 Compression
CIF Real-time recording per channel
Record & Display at 120/120 FPS
Various recording modes
USB mouse function
Remote viewing through IE Browser or client program
Multi-level user management
Video loop on one channel
Add one IDE hard drive up to 2000 GB
USB port for backup to HDD/CDRW/Flash Drive
Audio on one channel

Product Specifications

Category Description
Video Compression H.264
Video Inputs 4 BNC
Video Output 1 BNC, 1 VGA
VGA Resolution 800x600, 1280x1024, 1024x768
Display Resolution Up to 704x480
Display Frame Rate (Shared) 120 FPS
Playback Resolution 176X120 QCIF, 352X240 CIF
Record Frame Rate (Shared) 120 FPS
Record Options Time, Alarm, Motion Detection and Manual
Search Options Search by Time, Event (Alarm or Motion Detection)
Hard Drive Number/Type Supported Supports up to 7 internal SATA HDD + 1 External
Audio Inputs/Outputs 1X RCA Audio input and 1XRCA Audio output
USB Port Yes
USB Support HD, DVD BURNER, FLASH DRIVE
Ethernet Port 1-RJ45
Remote Monitoring Client Software, Internet Explorer
Software Operating System Support Windows 2000, Windows XP, Windows Vista
RS-485 Port (PTZ Support) Yes
External Alarm In/Out 4/1
Power Supply 12V 3A
Power Consumption 20/42 W (without HD)
Operating Temperature/Humidity 14°F - 131°F, 10%-90%
Dimensions 315mm x 230mm x 45mm
Weight 7 LBS

DISCONTINUED, SEE QSD9004 SERIES
