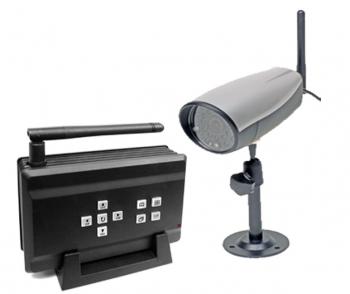

2.4 Ghz Digital Wireless Outdoor Camera Kit with Receiver 26ft Night Vision

Q-SEE  QSDT404C

Q-SEE QSDT404C 2.4 Ghz Digital Wireless Outdoor Camera Kit Receiver 26ft Night Vision(QSDT304C2)


Product Model Number:
QSDT404C
Overview:

Q-See wireless systems allow you to monitor areas where it is difficult to set up a standard camera.

The QSDT404C is a wireless camera and receiver combination that allows you to monitor an area through a TV set. You can also attach the receiver to a VCR or DVR to record the video files. The unit uses digital technology that helps it avoid interference from other wireless devices using the same frequency such as wireless internet routers and cordless phones. The receiver can support up to 4 wireless cameras and will allow you to view them all at once or one at a time manually, or in an automatic sequence. It can receive signals from the cameras from a distance of up to 300 feet line of sight, and an audio receiver so that you can hear as well as see what is happening. The camera is strong enough to send a signal up to 300 feet line of sight, and has a microphone to send audio as well as video to the receiver. This camera can be placed indoor or outdoor as it is weatherproof. It has a 3.6mm lens that will allow you to get a good field of view, and 24 LEDs that provide night vision up to 26 feet.

Q-See wireless products are portable, mobile units that deliver live images directly to a TV, or dedicated recording stations such as a DVR or VCR.


Product Features

Digital 2.4Ghz Digital Wireless Technology
MJPEG Format Compression
Supports up to 4 Cameras Simultaneously
Displays Cameras all at once, one at a time, or one at a time in sequence
Supports A/V output from receiver
Supports Channel Pairing to avoid interference from other devices
Supports AE and AWB
Transmission distance up to 300 ft

Product Specifications

Category Description
CAMERA:
1/4 inch CMOS sensor
Lens: 3.6mm
Minimum Lumination: 2 Lux
24 LEDs
26ft night vision
Vertical Resolution: 300TVL
Electronic Shutter: 1/60-1/120 sec
5V Power supply
330mA power consumption (LED off)
Transmission Frequency 2402 to 2482 Mhz
100m unobstucted range
White balance: auto
Operating temp: 14 to 122œF
RECEIVER:
Supports up to 4 cameras
Supports On Screen Display operation
MJPEG compression
Transmission Frequency 2402 to 2482 Mhz
Quad display
Single channel display
Display Frame Rate: 320x240 QVGA 25fps, 640x480 VGA 9 fps
Power Supply 5V
250mA power consumption
250mA power consumption
100m unobstucted range
Supports AE and AWB
Operating temp -4œ to +122œF

Product Contents

Qty Description
1 QSDT404 Digital Wireless Receiver
1 QSDW200C Color Camera
1 Power Adapter for Receiver
1 Power Adapter for Camera
1 RCA video/sound Cable for the Receiver

Product Accessories

Model # Description
QS1990 19 Inch LCD Monitor
QSDT404 Receiver for QSDT404C and QSDT304C2 Digital Wireless Systems
QSDW200C 2.4 GHz Digital Wireless 3.6mm CMOS Color Camera for QSDT404C and QSDT304C2 Wireless Systems

Product FAQs

Standard wireless cameras can transmit up to 300 feet line of sight.
You can have up to four wireless cameras in one location. You can view all cameras at once using four receivers or you can use one receiver and switch to each camera. You will only be able to view one camera at a time if you only use one receiver. If you want to install multiple wireless cameras in one location it's best to order them at the same time so that they can be set to different channels.
Cordless phones that operate on the 2.4 GHz frequency will cause interference with 2.4 GHz cameras. Interference should be minimal and usually occurs if the phone is between the camera and receiver. This is not usually a problem with digital wireless devices since they have technology that allows them to filter and lock in on frequencies.
A frequency is used to transmit a signal or data like video. 2.4GHz is the specific wireless frequency that our tranmitters use to send video signal to a receiver. All of our wireless cameras operate on the 2.4 GHz frequency. Range varies from 200' to 700' depending on environmental conditions. These units are FCC approved.
It is possible to experience interference from 2.4Ghz phones or wireless internet routers. Also garage door openers, alarm systems and other devices on the 2.4Ghz frequency can cause interference. Microwave ovens and similar devices can also cause occasional interference, but the biggest problem are wireless routers because they are always on and can have a long range.This is not usually a problem with digital wireless devices since they have technology that allows them to filter and lock in on frequencies..
Wireless cameras do not have a video cable that runs from the camera to the recording device. Like all electronics they must still be powered in order to function.

Product Manuals

Name Language
QSDT404C-Manual.doc English

Price: $159.99
Buy Product Online | Visit Store Home

Manufactured by Q-SEE
