2.4 Ghz Wireless Indoor Mini Camera Kit with Receiver

QSWLMCR 2.4 Ghz Wireless Indoor Mini Camera Kit with Receiver

Q-SEE - QSWLMCR 2.4 Ghz Wireless Indoor Mini Camera Kit with Receiver 15ft night vis


Overview:

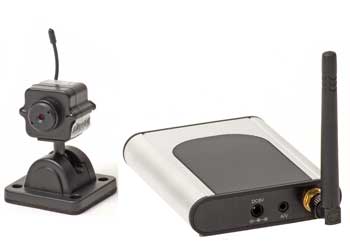

Q-See wireless systems allow you to monitor areas where it is difficult to set up a standard camera. The QSWLMCR is an indoor mini wireless camera and receiver combination that allows you to monitor an area through a TV. You can also attach the receiver to a VCR or DVR to record the video files. The receiver can support up to 4 wireless cameras and will allow you to view them one at a time manually, or in an automatic sequence. It can receive signals from the cameras from a distance of up to 300 feet line of sight, and an audio receiver so that you can hear as well as see what is happening. The camera is extremely small, it fits in the palm of your hand and is easy to conceal so that you can monitor an area without the camera being detected, and has a microphone to send audio as well as video to the receiver. Q-See wireless products are portable, mobile units that deliver live images directly to a TV, or dedicated recording stations such as a DVR or VCR.

Product Features

2.4GHz Wireless technology
Receiver supports up to 4 wireless cameras
Add-on camera model: QSWLMC
Tiny size for discreet observation and portability (Perfect for covert surveillance)
Captures and records clear color video images
Built-in microphone for audio monitoring
330 ft. of transmission line of sight
Camera: CMOS Imaging sensor
5.0 Lux
380 TV lines resolution
Receiver easily connects to TV, VCR or DVR

Product Specifications

Category Description
CAMERA: CMOS sensor
6mm
380TVL,510x492 pixels
5 Lux8V Power supply
100mA power consumption
FM Modulation
100m unobstucted range
Dimensions 24x25x24mm
Weight 14g
Operating temp -4œ to +122œF
RECEIVER: 2400MHz to 2483MHz
Power Supply 12V
190mA power consumption
100m unobstucted range
FM Demodulation
Dimensions 92x77x22mm
Weight 200g
Operating temp -4œ to +122œF

Product Contents

Qty Description
1 4 Channel Receiver
1 Indoor Mini Wireless Camera
1 Antenna for Receiver
2 Adapters
1 Mounting Bracket
1 Manual

Product FAQs

Wired cameras have a video cable that runs from the camera to your recording or viewing device such as a DVR, VCR or monitor. Wireless cameras have a built-in transmitter that sends the video signal to a receiver. The receiver connects to your recording or viewing device.
Standard wireless cameras can transmit up to 300 feet in line of sight.
You can have up to four wireless cameras in one location. You can view all cameras at once using four receivers or you can use one receiver and switch to each camera. You will only be able to view one camera at a time if you only use one receiver. If you want to install multiple wireless cameras in one location it's best to order them at the same time so that they can be set to different channels.
Cordless phone that operate on the 2.4 GHz frequency will cause interference with 2.4 GHz cameras. Interference should be minimal and usually occurs if the phone is between the camera and receiver.
A frequency is used to transmit a signal or data like video. 2.4GHz is the specific wireless frequency that our tranmitters use to send video signal to a receiver. All of our wireless cameras operate on the 2.4 GHz frequency. Range varies from 200' to 700' depending on environmental conditions. These units are FCC approved.
It is possible to experience interference from 2.4Ghz phones or wireless internet. Also garage door openers, alarm systems and other devices on the 2.4Ghz frequency can cause interference. Microwave ovens and similar devices can also cause occasional interference.
Wireless cameras do not have a video cable that runs from the camera to the recording device. Like all electronics they must still be powered in order to function.

Product Manuals

Name Language
QSWLMC-Manual.pdf English

Price: $65.99
