Spec Sheet Features:

Triplex (Live/Recording/Playback simultaneously) MPEG-4 Compression High Resolution 720 x 480 Real Time Display 120 Frames/sec Full Real Time Recording: 120 frames/sec capacity (30 frames/sec x 4 channels) Programmable Recording Speed on Each Channel Up to 2 bays HDD: 320 GB SATA HDD Included 4 Video Inputs (BNC) & 4 Looping Output (BNC) Back Up: USB port, Through Network, VCR Remote Controlling & Monitoring via TCP/IP (GUI & Internet Explorer) Event Recording by Alarm Sensor or Video Motion Detection Alarm Notification via E-mail by Alarm, Video Loss,Power Loss & HDD Failure DDNS support 1 CH Audio In & Out Pan/Tilt Control Remote Controller

Package Includes:

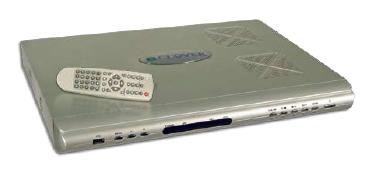

1 - 4Ch Standalone DVR 1 - AC Power Supply 1 - Software for Remote Setup 1 - Instruction Manual 1 - Warranty Registration Card 1 - Remote Controller

SPECIFICATIONS:

Operating System	Embedded Linux
TV System	NTSC 60fields/sec
	PAL 50fields/sec
Resolution	NTSC 720 x 480/720 x 240/360 x 240
	PAL 720 x 576/720 x 288/ 360 x 288
Video Inputs	4 BNC 1.0Vp-p Composite 75 ohms
Video Outputs	1.0Vp-p Composite 75 ohms,
	3 outputs: 1-VGA output, 1-Composite, 1-Spot
Audio In/Outputs	1 Ch
Real Time Display	120 Frames/sec
Recording Frame Rate	120 Frames/sec, Programmable on each Channel
Algorithm	MPEG-4 (Average file size: 4KB)
Recording	Schedule, Continuous, Event Recording by Motion
Hard Disk Drive	Up to 2 bays, 320GB SATA HDD Included
Replay	Forward, Reverse (fast, normal)
Back up	USB port, Ethernet & VCR
Alarm In	4 inputs
Alarm Output	1 relay output
Network	Ethernet 10/100M
Power Source	DC 12V 5A
Operating Temp.	40º F to 122º F
Humidity	10 to 90%
Dimensions	430(W) x 320(D) x 45(H) mm
Weight	12 ibs
